LM321H 1MHZ High Voltage Bipolar Opamp
1、Features
| 3、Applications
|

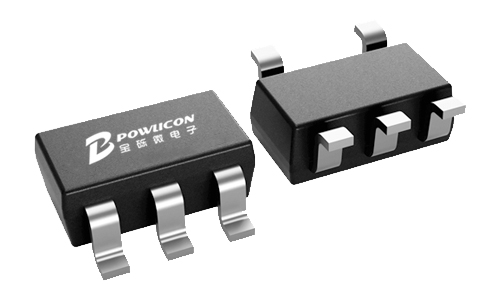

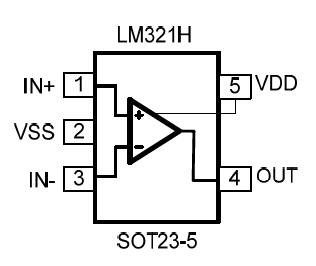

2、General Description The LM321H have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent currentof 250μA/amplifier at 5V. The LM321H is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM321H. The operating range is from 3V to 36V. The LM321H single is available in Green SOT-23-5 package. | 4、Pin Configuration
|
物品尺寸 | 供貨周期的情況 | 入口通道數 | 成就電流范圍 (V) | 增益控制帶寬的配置積 | 外部電流大小/管道 | 和平直流電壓 （mV） | 穩定性直流電壓溫漂 （μV/°C） | 導出偏置瞬時電流 （nA） | 封裝類型 |
| LM321H | 量產 | 1 | 3.0-36 | 1MHz | 250uA | 5 | 7 | 20 | SOT23-5 |
